Skyddsfabriken - Prepping och Skydd

Dynamo Generator: Välj mellan 10kw, 12kw, 15kw, 20kw, 30kw, 50kw, 75kw

Dynamo Generator: Välj mellan 10kw, 12kw, 15kw, 20kw, 30kw, 50kw, 75kw

64 999 SEK
69 499 SEK 64 999 SEK
Rea Slutsåld
Skatt ingår. Frakt beräknas i kassan.
Voltage(V)
Dynamo Generator: Välj mellan 10kw, 12kw, 15kw, 20kw, 30kw, 50kw, 75kw

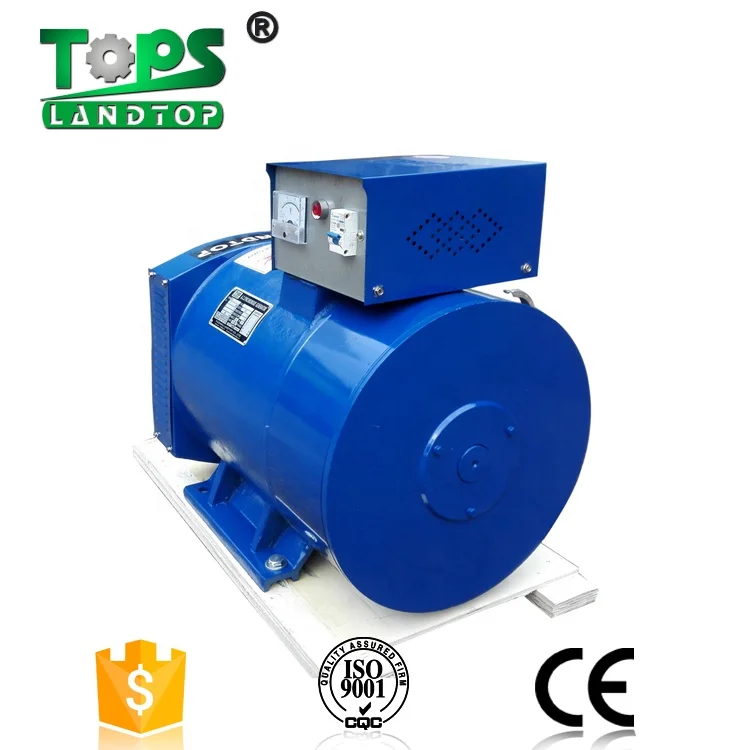

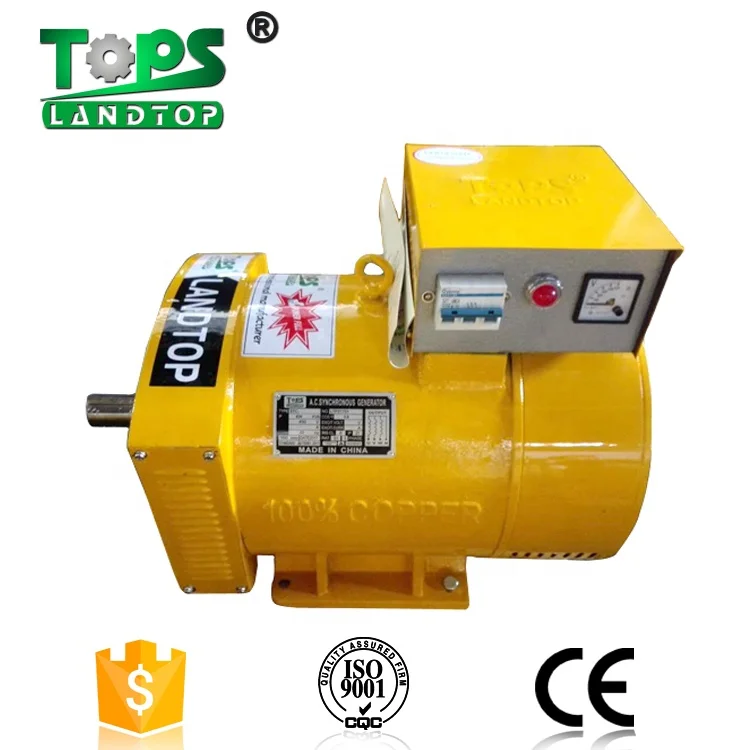

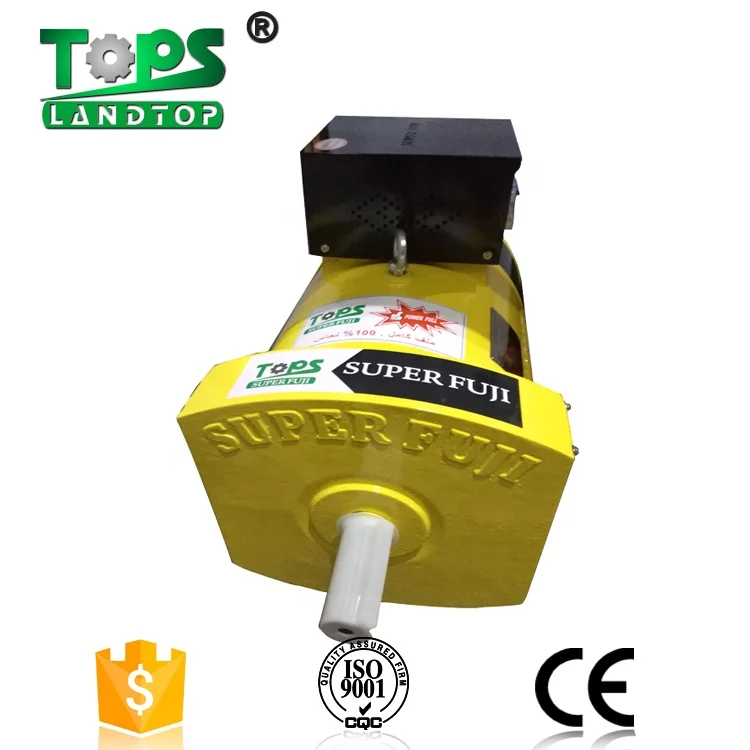

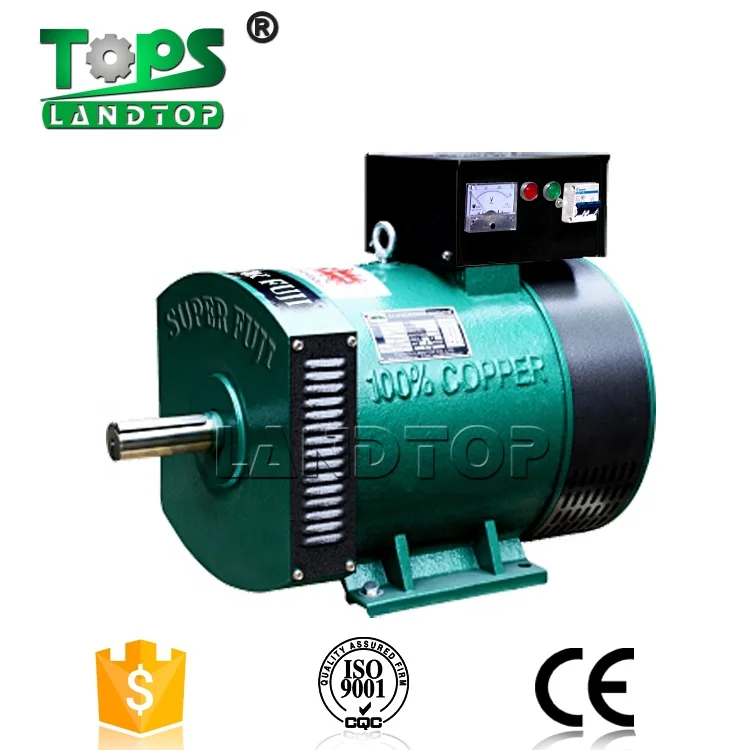

Landtop ST/STC Single/Three Phase Alternator
Alternator Model
LTA
Power
2kw-75kw
Voltage
400V/200V
Voltage adjust range
>3%
 power factor
0.8
Frequency
50hz 60hz
Insulation class
B or F
Insulation class
IP21
Packing
Plywood case



This series of generators can be used in town, countryside, work sites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case.
The generators are of drip-poof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.
The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.

They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed.When the revolution slip of prime mover is 3% and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, without any starting device the generator can directly start an unloaded squirrel cage induction motor.

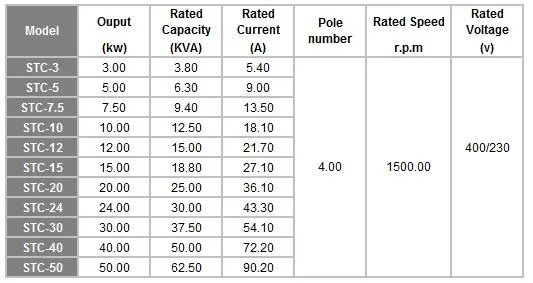

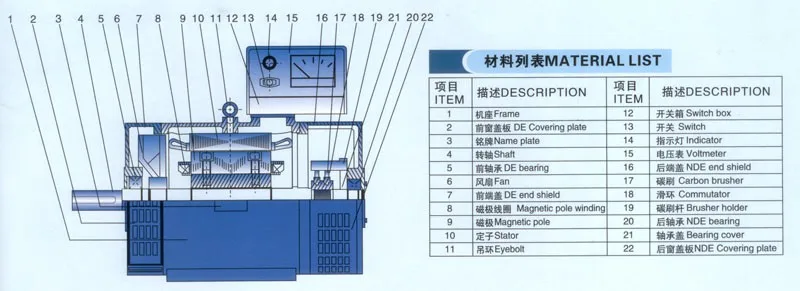

Technical Data & detail images
